GM No 1 to 21.A.93(b)(1)(iii) Interaction of changes to the type design and changes to operational suitability data (OSD)

CAA ORS9 Decision No. 1

In general, it has to be assumed that changes to the type design can have an effect on the OSD.

Due to the alleviating nature of the OSD constituent master minimum equipment list (MMEL), the impact of design changes on the MMEL can be treated differently from the impact on other OSD constituents. Therefore, a separate GM No 2 to 21.A.93(b)(1)(iii) is available to explain the interaction between design changes and the MMEL. The following guidance is, therefore, only applicable to the other OSD constituents: flight crew data (FCD), cabin crew data (CCD), simulator data (SIMD), and maintenance certifying staff data (MCSD).

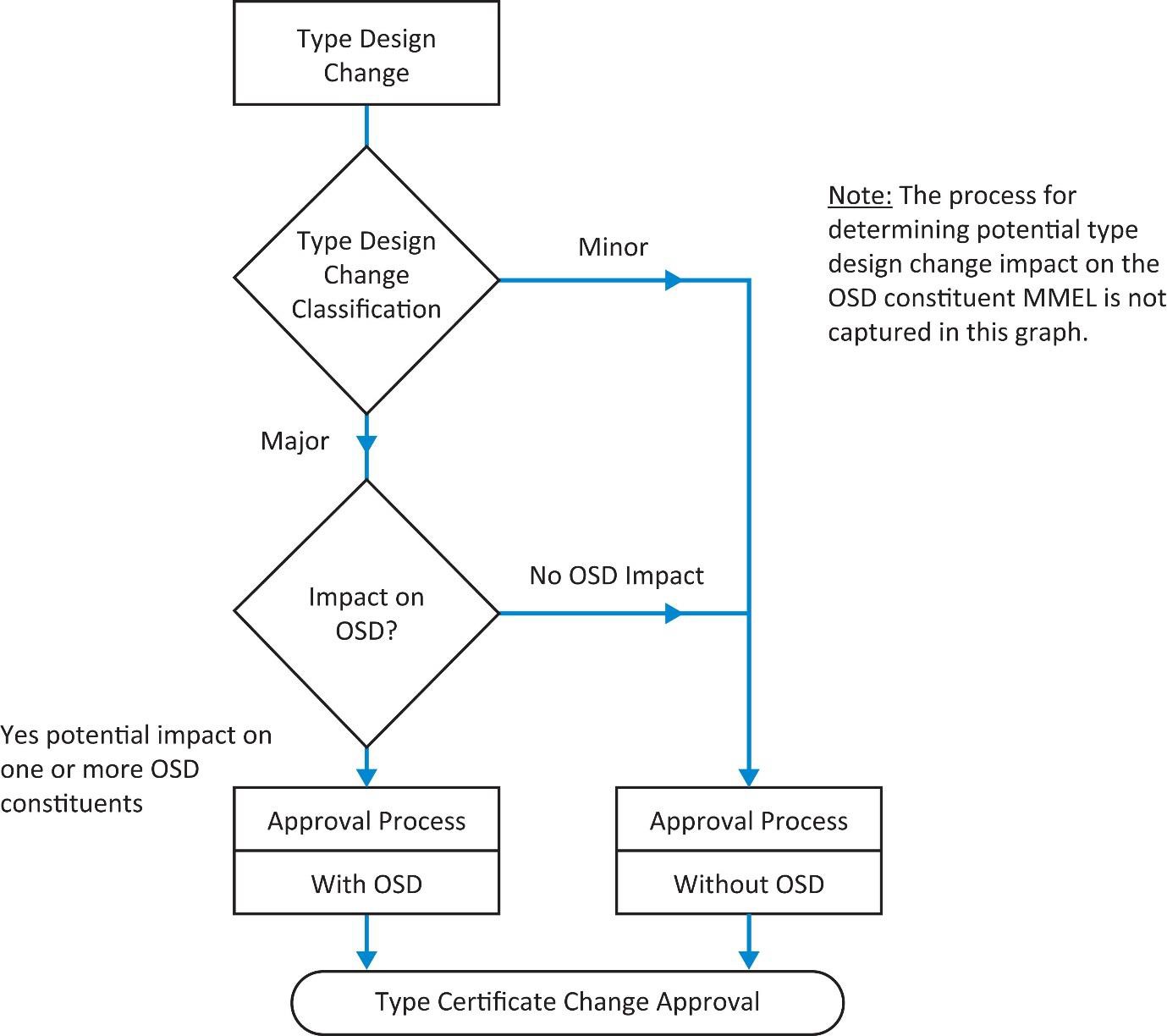

In assessing the interactions between the changes to the type design and to the OSD, the following can be taken into consideration (see Figure 1):

Figure 1

(a) Changes to the type certificate (TC) that only include a minor change to the type design (‘stand-alone’ type design changes) do not have an effect on the OSD. No dedicated assessment of the effects of the minor type design change on the OSD is needed in this case.

(b) TC changes that only include a major type design change do not need to be assessed for their effect on the OSD in case the experience of the applicant has demonstrated that similar changes do not have an effect on the OSD. Examples of major type design changes and their expected effect on OSD constituents are identified in Table 1 below.

Table 1: Examples of major type design changes and their expected impact on OSD constituents

Discipline	Example of major type design change	Expected impact on OSD constituent
		FCD	SIMD	CCD	MCSD
Structure	(i) Changes such as a cargo door cut- out, fuselage plugs, change to dihedral, addition of floats.	No	No	No	tbd
	(ii) Changes to material, processes or methods of manufacture, or to primary structural elements such as spars, frames and critical parts.	No	No	No	tbd
	(iii) Changes that adversely affect fatigue or damage tolerance or life limit characteristics.	No	No	No	tbd
	(iv) Changes that adversely affect aeroelastic characteristics.	No	No	No	tbd
	(v) Aircraft weight changes such as maximum zero fuel weight (MZFW) changes or reduction in maximum take-off weight (MTOW) for operational considerations.	No	No	No	No
Cabin safety	(i) Changes which introduce a new cabin layout of a sufficient extent to require a reassessment of the emergency evacuation capability, or which adversely affect other aspects of passenger or crew safety in aeroplanes with more than 19 passenger seats.	No	No	Yes, potential impact	No
	(ii) Changes which introduce new cabin layout of a sufficient extent to require a reassessment of the emergency evaluation capability, or which adversely affect other aspects of passenger or crew safety in aeroplanes with 19 or less passenger seats.	No	No	No (unless assessment identifies need for CCD	No
	(iii) Installation of observer seat.	No	No	Yes, potential impact	No
Flight	(i) Software changes that do not affect the pilot interface.	No	No	No	No
	(ii) Software changes that affect the pilot interface.	Yes, potential impact	No	No	No
Systems	(i) Updating the aircraft cockpit voice recorder (CVR) or flight data recorder (FDR) to meet a later standard.	No	No	No	No
Propellers	(i) Changes to: 1. diameter, 2. aerofoil, 3. planform, 4. material, and 5. blade retention system.	No	No	No	No
Engines	(i) Power limit change	No	No	No	No
Rotors and drive systems	[Reserved]
Environment	(i) A change that introduces either an increase in the noise certification level(s) or a reduction in the noise certification level(s) for which the applicant wishes to take credit.	No	No	No	No
Power plant installation	(i) Modifications to the fuel system and tanks (number, size, or configuration)	No	No	No	tbd
Avionics	Comprehensive flight deck upgrade, such as conversion from entirely- federated, independent electromechanical flight instruments to highly-integrated and combined electronic display systems with extensive use of software and/or complex electronic hardware	Yes, potential impact	No	No	tbd

(c) Design changes to aircraft for which OSD is not required in accordance with Article 7(a)(2) of Regulation (EU) No 748/2012, as amended by Regulation (EU) No 69/2014, cannot trigger the need to establish OSD.

(d) The OSD constituents SIMD and MCSD were not required to be included in the ‘catch-up’ OSD in accordance with Article 7(a)(2) of Regulation (EU) No 748/2012, as amended by Regulation (EU) No 69/2014. No design change can trigger the need to add that constituent.

(e) When the design change makes an OSD constituent applicable (see GM No 1 to 21.A.15(d) – Clarification of the applicability of operational suitability data (OSD) constituents) where it was not applicable before, that OSD constituent should be added to the application for the approval of the change to the TC.
