AMC1 CAT.POL.H.205(e) Take-off

CAA ORS9 Decision No. 1

OBSTACLE CLEARANCE IN THE BACKUP AREA

(a) The requirement in CAT.POL.H.205(e) has been established in order to take into account the following factors:

(1) in the backup: the pilot has few visual cues and has to rely upon the altimeter and sight picture through the front window (if flight path guidance is not provided) to achieve an accurate rearward flight path;

(2) in the rejected take-off: the pilot has to be able to manage the descent against a varying forward speed whilst still ensuring an adequate clearance from obstacles until the helicopter gets in close proximity for landing on the FATO; and

(3) in the continued take-off; the pilot has to be able to accelerate to V_TOSS (take-off safety speed for Category A helicopters) whilst ensuring an adequate clearance from obstacles.

(b) The requirements of CAT.POL.H.205(e) may be achieved by establishing that:

(1) in the backup area no obstacles are located within the safety zone below the rearward flight path when described in the AFM (see Figure 1, in the absence of such data in the AFM, the operator should contact the manufacturer in order to define a safety zone);or

(2) during the backup, the rejected take-off and the continued take-off manoeuvres, obstacle clearance is demonstrated to the CAA.

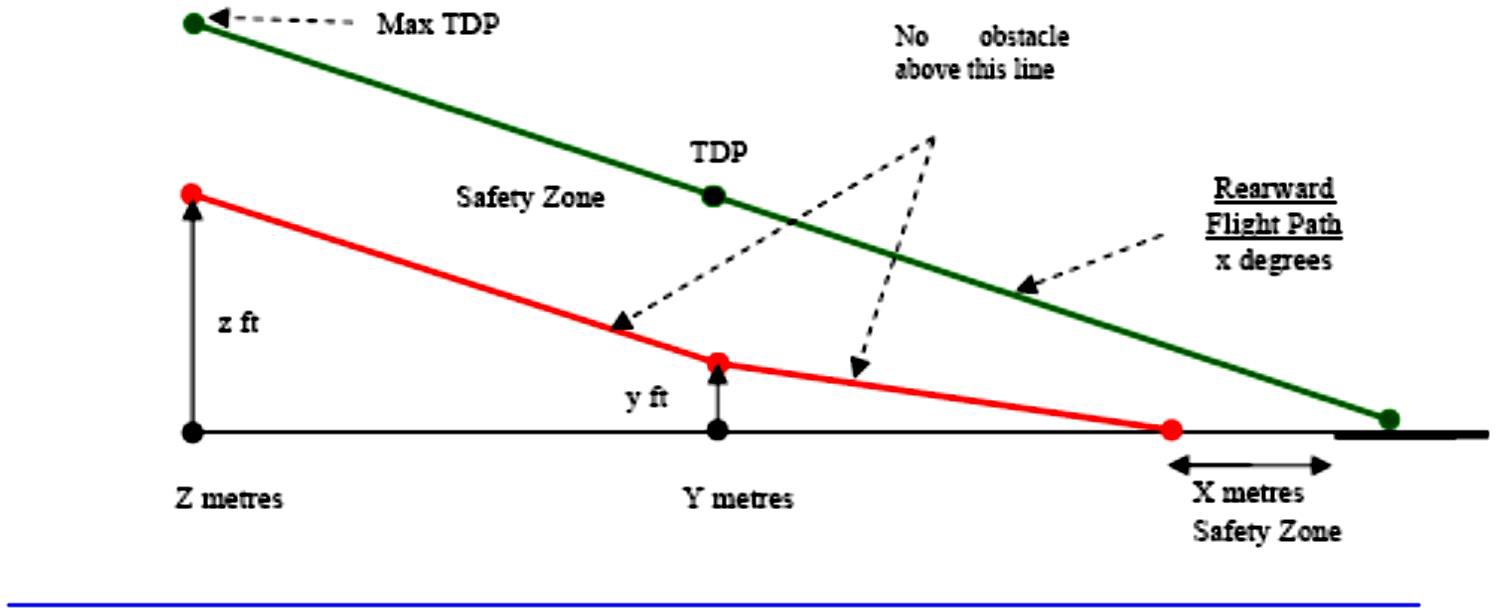

Figure 1

Rearward flight path

(c) An obstacle, in the backup area, is considered if its lateral distance from the nearest point on the surface below the intended flight path is not further than:

(1) half of the minimum FATO (or the equivalent term used in the AFM) width defined in the AFM (or, when no width is defined 0.75 D, where D is the largest dimension of the helicopter when the rotors are turning); plus

(2) 0.25 times D (or 3 m, whichever is greater); plus

(3) 0.10 for VFR day, or 0.15 for VFR night, of the distance travelled from the back of the FATO (see Figure 2).

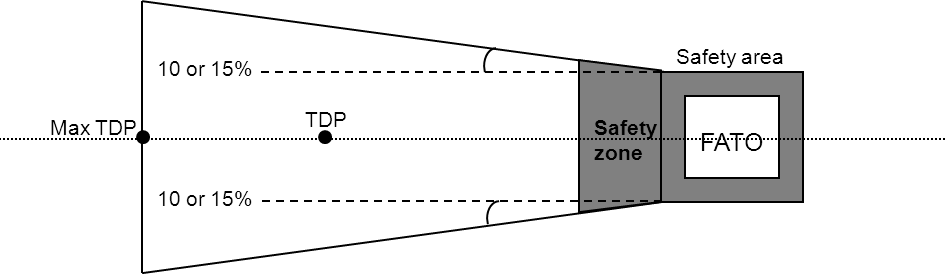

Figure 2

Obstacle accountability
