GM1 SPA.LVO.110 Aerodrome-related requirements, including instrument flight procedures

CAA ORS9 Decision No. 47

ASSESSMENT OF AERODROMES FOR THE INTENDED OPERATIONS — AEROPLANES

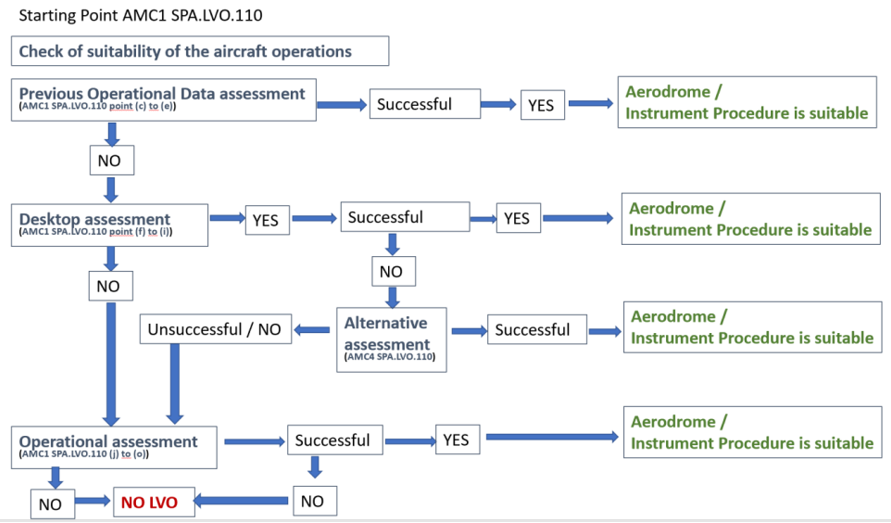

A diagram with a schematic of the assessment described in AMC1 SPA.LVO.110 Aerodrome‑related requirements, including instrument flight procedures is provided below:

Flow chart showing a check of the suitability of aircraft operations based on a previous operational data assessment, desktop assessment or operational assessment as to whether an instrument procedure is suitable
